UNIPORT7000-MTC

Multi-task CNC machining centre

Uniport7000-MTC

Mill-Turn capabilities
Powerful machining

Short lead times

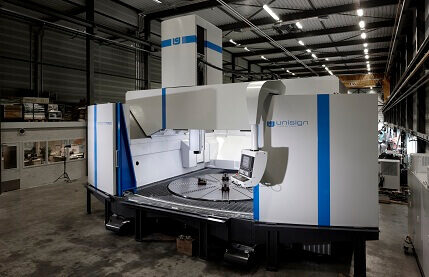

When you need the flexibility of mill-turn operations on both single part and series production, choose the Uniport 7000-MTC. This multi-task CNC machine achieves extremely short lead times and very high accuracy, and is ideal for quick-response manufacturing. A high-rail gantry machine with a travelling bridge and stationary carousel turning station, it is built on our most flexible machine platform. It will perform 5-axis machining within a large working envelope, making it a truly cost-effective production choice for a wide range of applications. The innovative ‘box-in-box’ construction guarantees superb rigidity and very stable and accurate production processes.

Learn more – inspiring customer stories >>

Get in touch Download brochure

Benefits

One to the power of two

With a Unisign multi-tasking machine you effectively get two machines in one, reducing your capital investment. For such machines, flexibility and reliability go hand in hand with productivity. The wide choice of spindles, drive units and machining heads that comes with this CNC machine extends its capabilities enormously. And with features like a dedicated exchangeable head for turning tools that eliminates load on the bearings while turning, you can be assured of a longer machine life too.

UNIPORT7000-MTC CNC machine | Multi-tasking machine | Wide choice of spindle and machining heads | unisign.com

High capacity

With its dedicated high-torque turning station, the Uniport 7000-MTC has enormous capacity, even for large diameter components. It can also take a very high load – up to 80 Ton on a 4.5 metre table – so that very heavy parts can be machined. And with the extended portal height of up to 2.6 metres, tall parts can also be handled with equal ease.

Quick changeovers

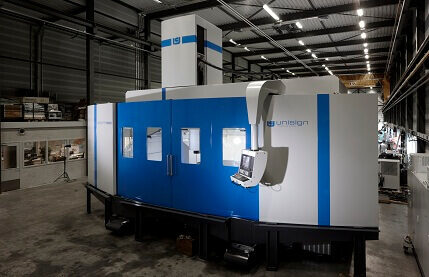

Good accessibility, with the table at floor level, means it’s easy for operators to step onto the table to change clamps and work pieces. And that enables really quick changeovers! It’s fully enclosed too, which not only keeps the working environment clean but also ensures a high level of safety.

Gallery

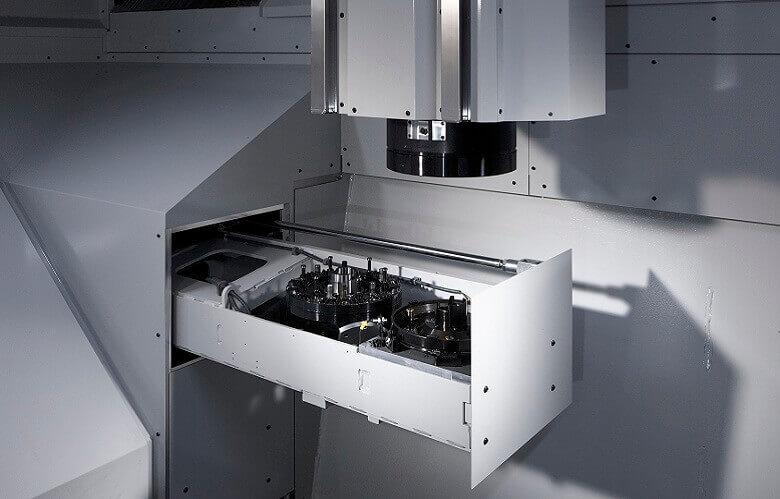

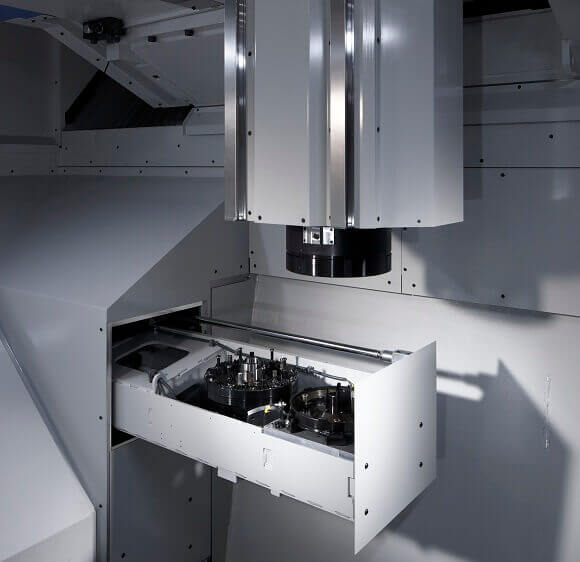

UNIPORT7000-MTC CNC machine | Wide range of machining heads | Flexibility in machining | unisign.com — Unisign produces high quality and innovative CNC machine tools. We supply and service worldwide a broad range of CNC machining centers.

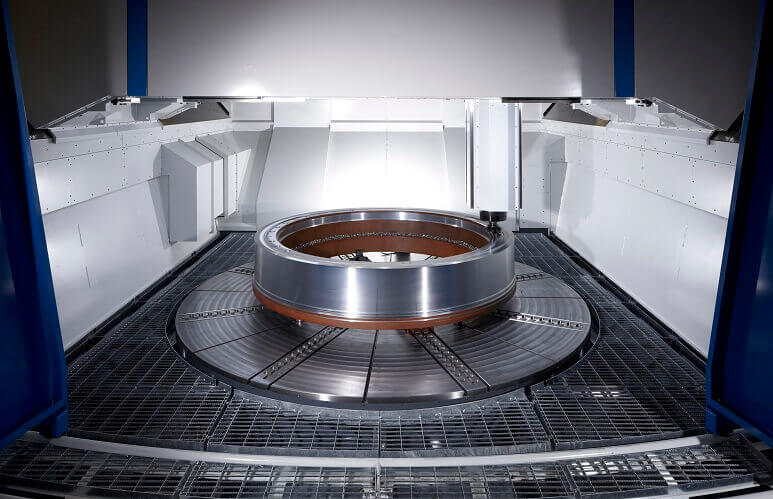

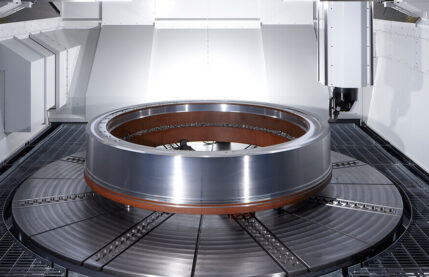

UNIPORT7000-MTC CNC machine | Carousel turning table | Also for wide diameter components | unisign.com — We deliver a customer specific solution for your specific production challenges. You receive worldwide direct factory support in services.

Technical specifications

This CNC machine, the Uniport 7000-MTC, can be configured in several ways, so there are different models to choose from. Similarly, there’s a huge selection of options, including spindles and machining heads. Get a taste of what’s possible below…

Work Area

X-axis
3.000 - 6.500 mm
Y-axis
2.000 - 3.500 mm
Z-axis
1.600 mm
Distance spindle nose to table
500 - 2.100 mm
Table
Table size
2.000 - 6.000 ø mm
Swing circle
2.500 - 6.500 ø mm

Spindle

Gear box driven spindle and values
42/73 kW
6.000 min-1
1.600 Nm
Carousel turning station
95 kW
up to 135.000 Nm

Various

Tooling
Taper size
HSK-A100 / Capto C8
Number of pockets
# 52-206
Tool change time
10 sec
Speed
Rapid traverse
40.000 mm/min
Feed Rate
5 - 40.000 mm/min

Accessories

Right angular indexing head
o
Universal indexing head
o
Various turning tool adaptors
o
5-axes machining
o
In-process measuring
o

CNC machine applications

Energy
General machining

Heavy duty turning, milling and drilling characterises the production of components for energy-producing equipment like (wind) turbines. So you need a CNC machine that can take the load. A mill-turn machining centre like the Unicom6000, Unicom7000 and the Uniport7000-MTC or a multi-functional Uniport6000 and Uniport7000 are the ideal solution for producing these demanding parts.

Pumps and valves for the oil & gas industry can be highly complex parts to produce with seals, gaskets, flanges and requirements like spiral grooves and elliptical conical eccentric turning. The machining centres from Unisign, with their high degree of automation and specially designed software, are a unique solution capable of milling parts that others cannot.

Find out more

At Unisign we understand that our customers don’t just buy a CNC machine, they buy a process. And price per part is key. So for general applications we offer high torque machines with high material removal rates, including 5-axis and 5-sided machining and a choice of moving table or palletized, depending on the footprint available.
